Description

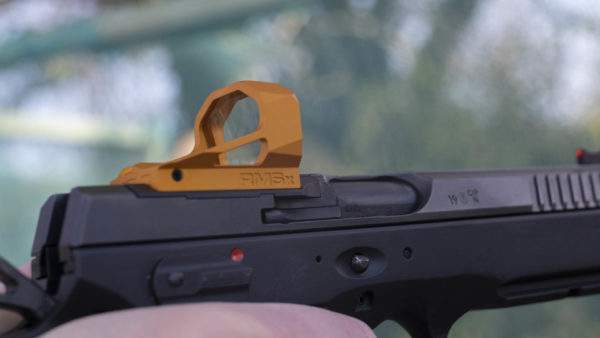

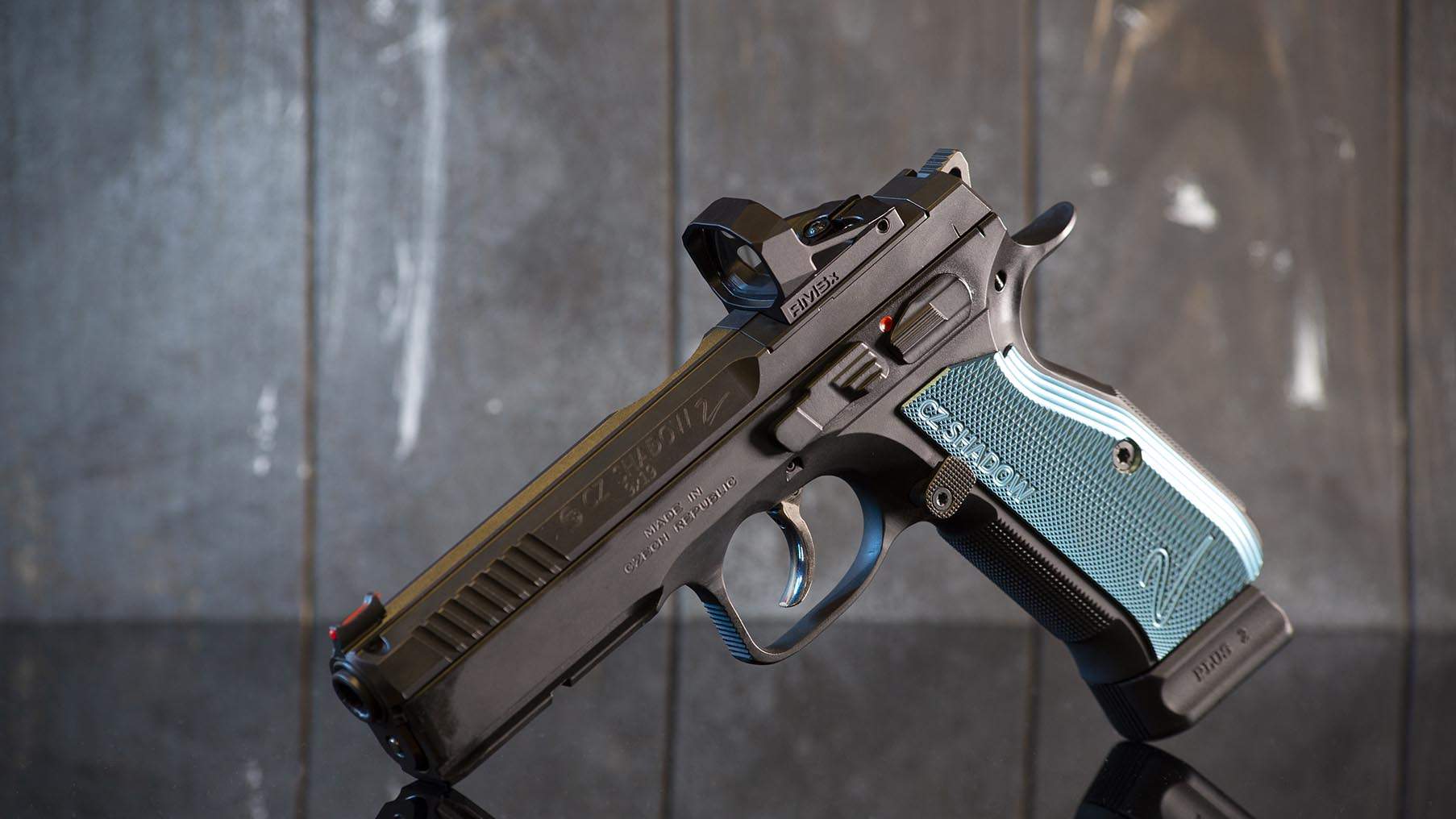

A sight aimed at the competitive shooter, the RMSx was specifically designed to answer a call from the competitive marketplace for a Shield Sight with a larger lens. The lens is 80% larger than our current Mini-Sight range and is an all new, top of its class, Hard Dip Coated Acrylic lens. Due to the larger lens, the RMSx will help our shooters to find the dot earlier in many scenarios. Most commonly when entering or exiting shooting areas and be forced to take shots while not in a stable position, allowing for faster first shot times as the shooter is able to find the dot earlier and to decrease shot-to-shot times by allowing the shooter to stay with the dot during recoil.

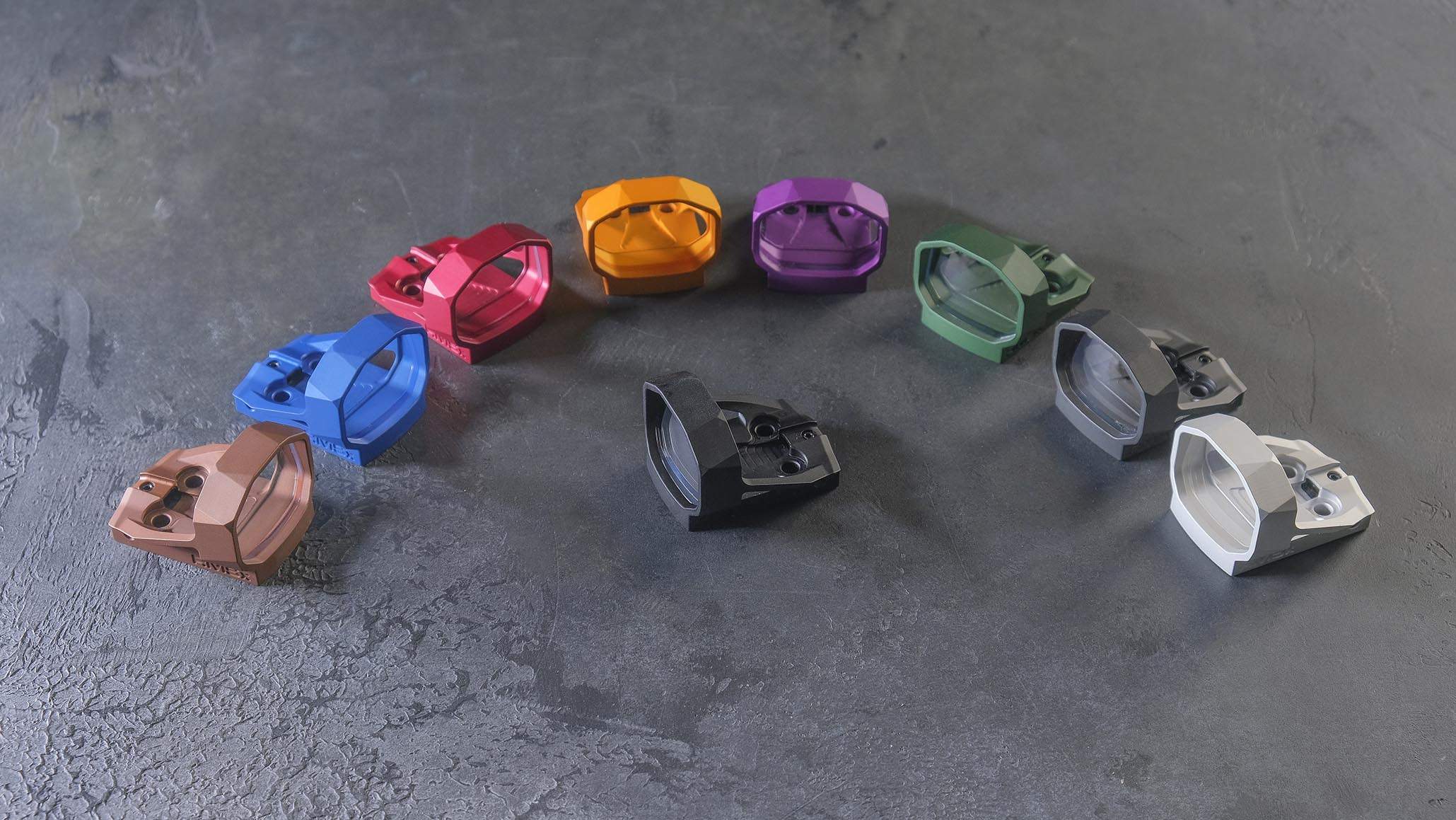

Following the success of the Shield Customizer, the RMSx will be available in 8 colours. Available in the most common dot sizes: 4MOA and 8MOA.

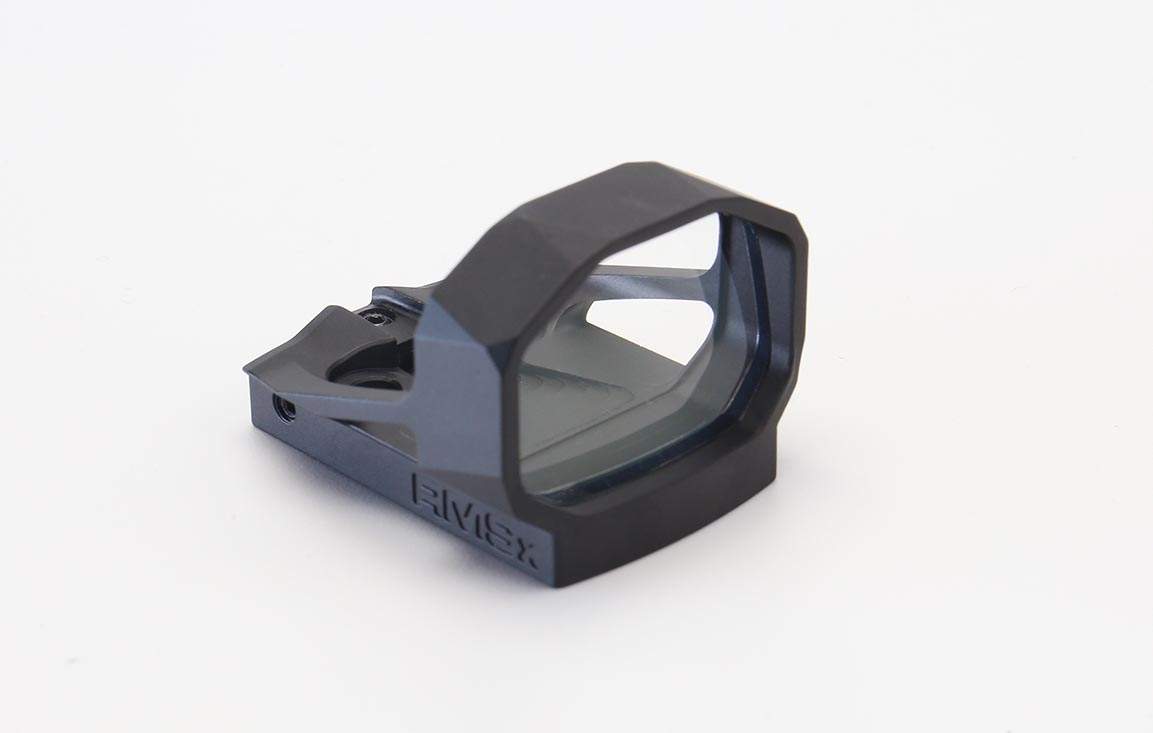

RMSx Sights

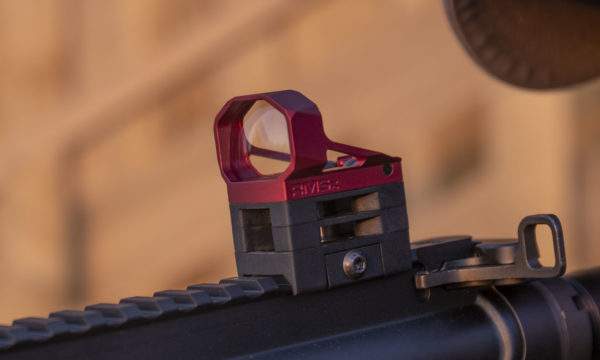

A sight aimed at the competitive shooter, the RMSx was specifically designed to answer a call from the competitive marketplace for a Shield Sight with a larger lens. The lens is 80% larger than our current Mini-Sight range and is an all new, top of its class, Hard Dip Coated Acrylic lens.
OPTICAL CHARACTERISTICS |
Light Source: | Red light emitting diode (LED) No laser; completely eye safe No radioactive materials |
Red Dot Size Options: | 4 MOA dot 8 MOA dot |
Lens: | Reflex x1 (no magnification) Hard-Dip coated acrylic. |
Lens Coating: | Anti-reflection No coloured coating, minimises visible signature |
ELECTRONICS |
Battery: | One 3V lithium battery, CR2032 |
Battery Life: | 2 to 3 years – average use >4 years – dark storage |
Brightness Adjustment: | Automatic |
Brightness Range: | Lowest – Compatible with Night Vision: Highest – Visible against the sky in bright daylight |
EXTERIOR |
Housing material: | Aluminium |

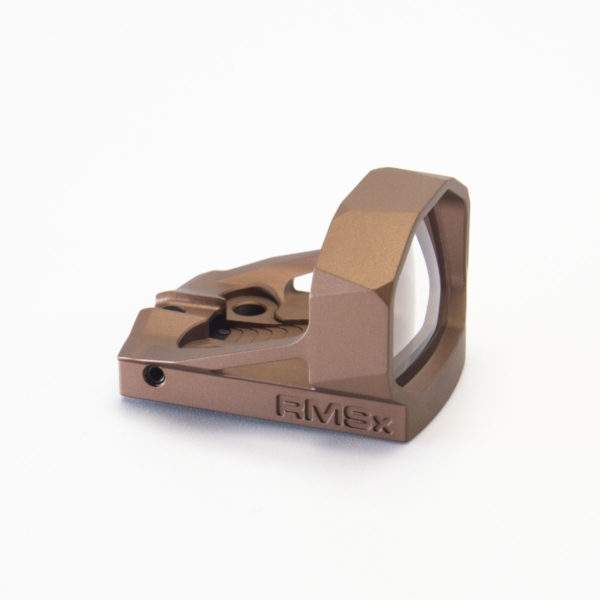

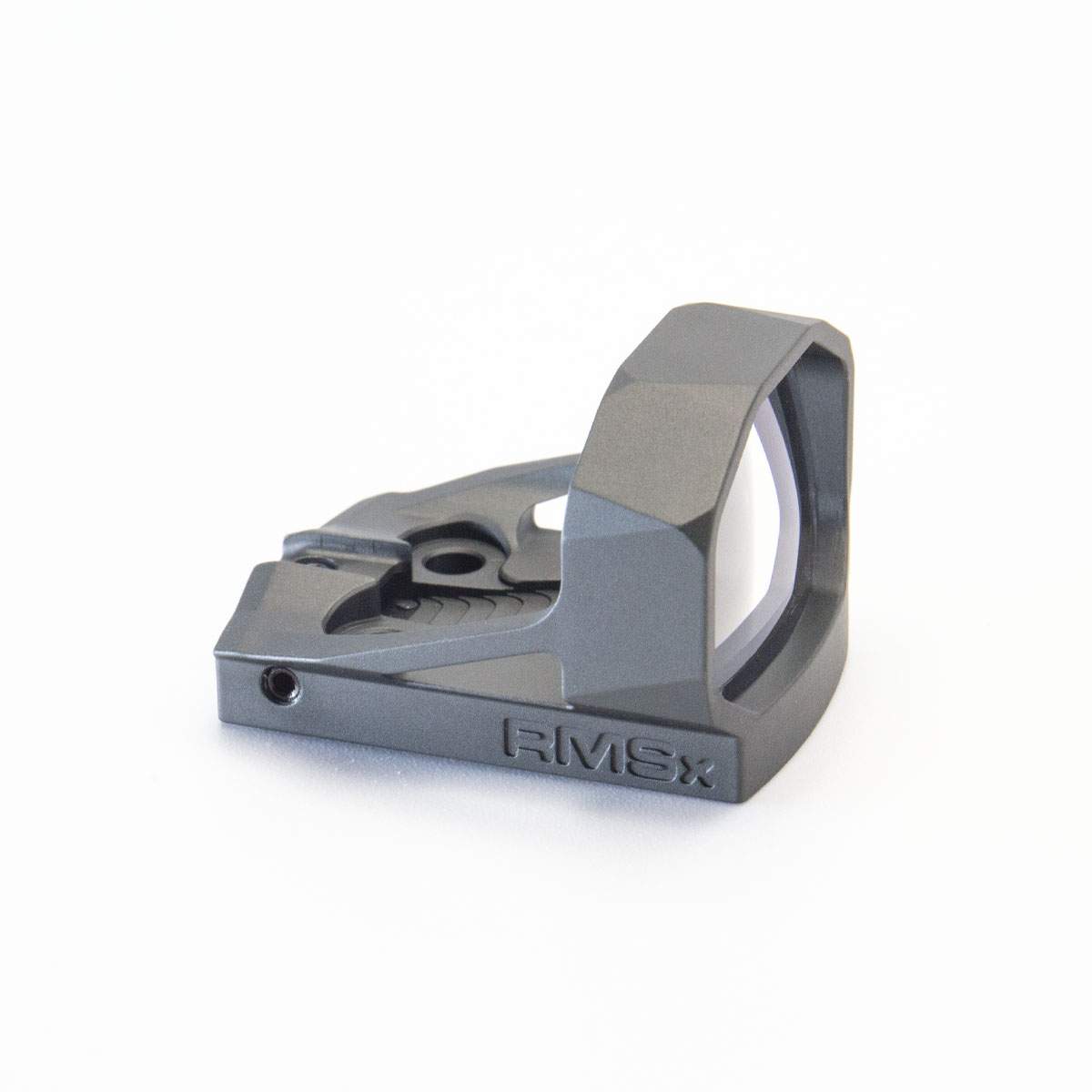

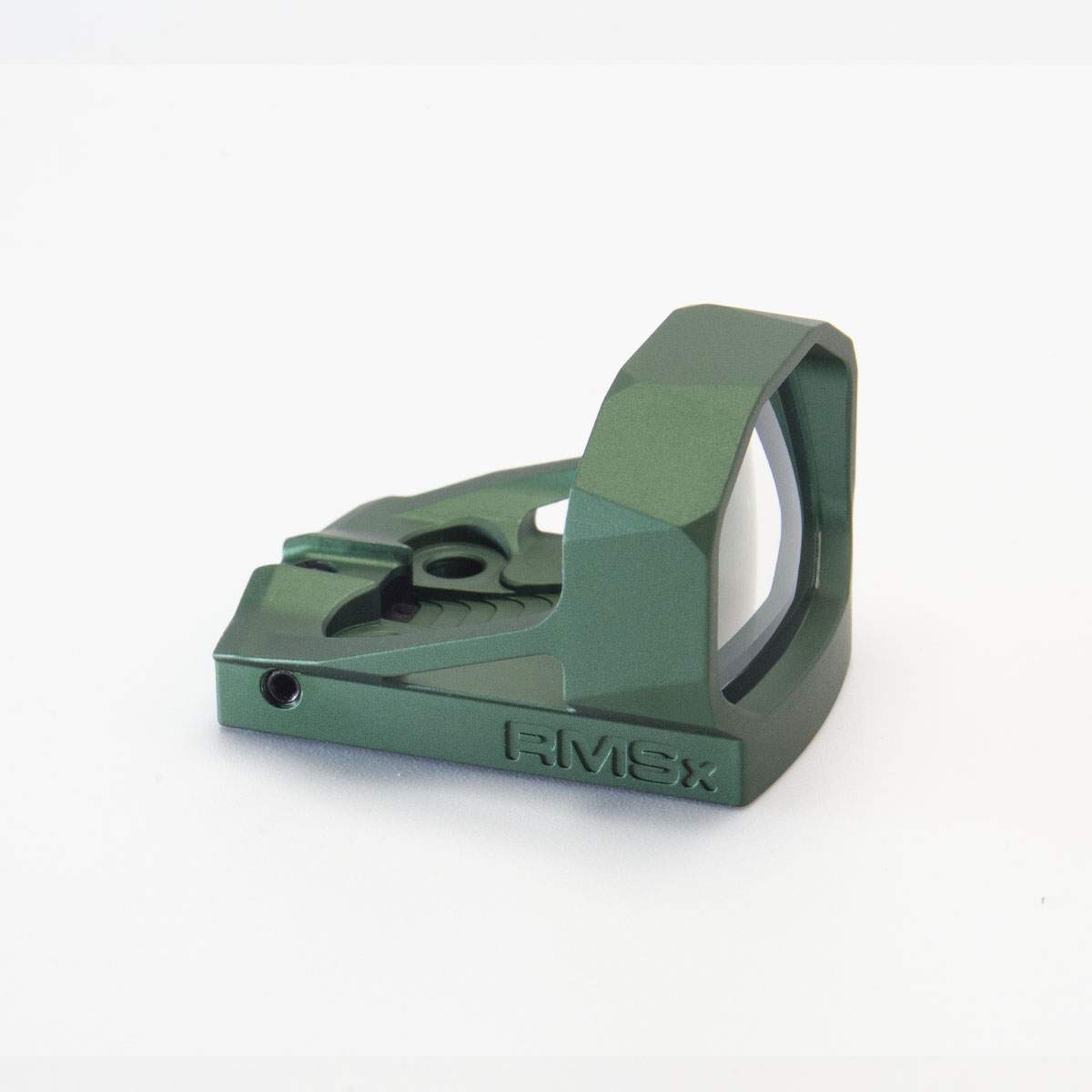

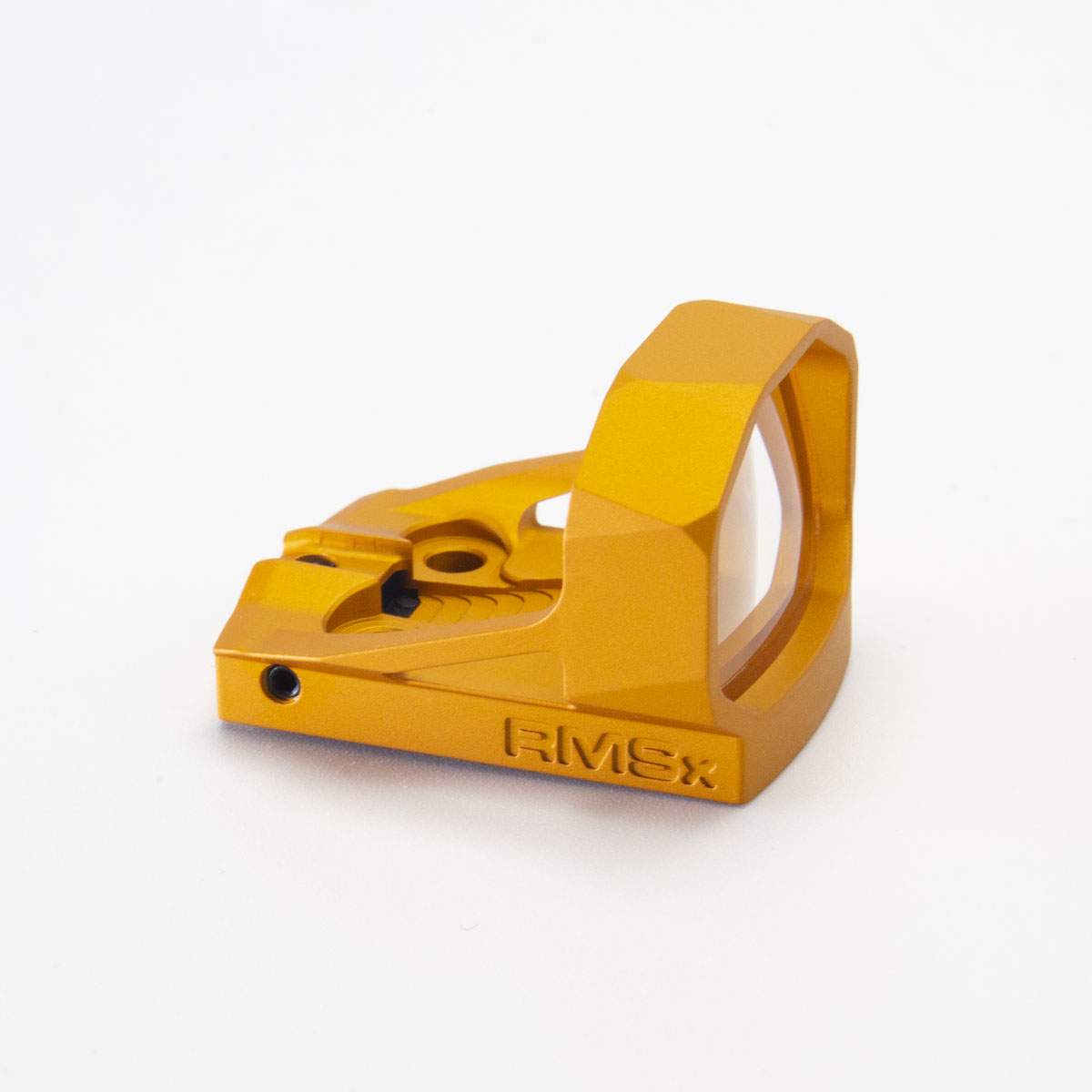

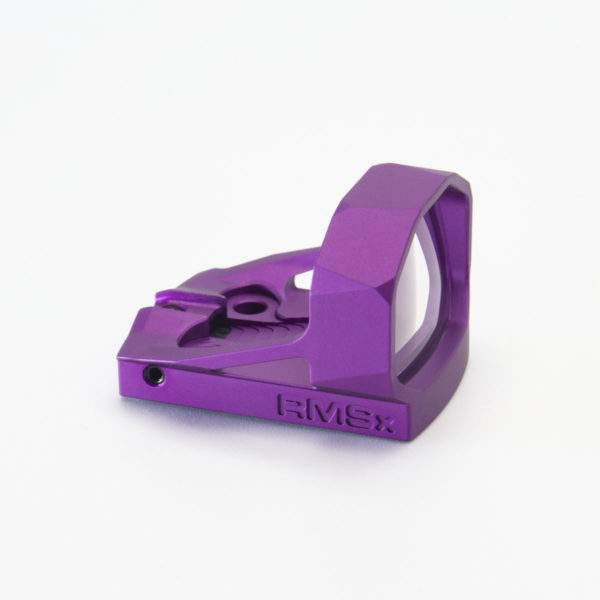

Color: | 9 colors |
Dimensions: | 42 x 34 x 23 mm |
Weight: | 19 grams |




Lens Cleaning
Lens Cleaning Instructions
When cleaning your Shield Sight, the lens needs to be prepared and cleared of any debris before the cleaning process can begin in order to avoid scratching the lens.
We recommend using compressed air to blow away debris rather than wiping the lens. This can be in a form of an aerosol-can, that can be purchased online.
Once you are happy that your lens is clear of debris, hot soapy water is the most effective solution to clean the lens. Household washing up liquid is sufficient. Using a Q-tip, dip the end in the solution and gently start wiping the lens discarding the Q-tip after each full rotation to ensure residue is not spread across the lens. We recommend starting around the edges of the lens working the way in to the centre.
This process can be used for both glass and polymer lenses
